KT Foiling Mast Cabon

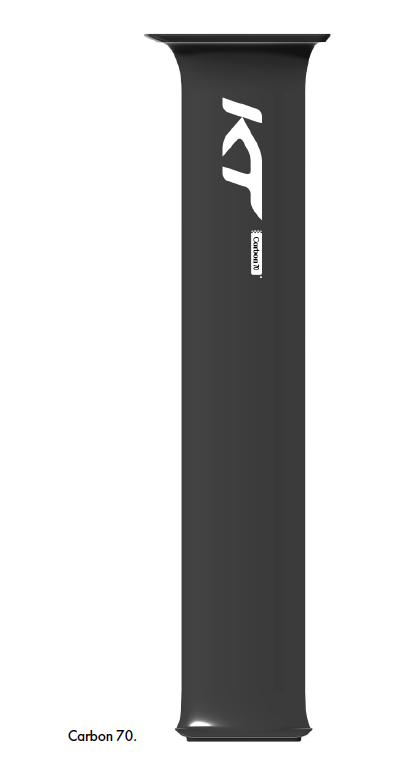

Carbon Mast
Available in 70, 77, 85 cm.
Our Carbon Mast is constructed from a High Modulus
(HM) Carbon blend, delivering superior strength and
minimal weight. Its straight, zero-taper design ensures a
consistent feel while reducing submerged drag, optimizing
performance at high speeds. The ventilation-resistant
foil section maintains efficiency even in turbulent conditions.
At 15.5mm thickness, it strikes an ideal balance
between rigidity, responsiveness, and speed, making it
perfect for high-performance use, heavier riders, and
high-aspect foils.
HM Carbon Blend: Combines superior stiffness with
lightweight properties.
Zero Taper Design: Ensures consistent feel and reduced
submerged drag.
Ventilation-Resistant Foil Section: Effective at high
speeds, steep angles, and in turbulent conditions.
15.5mm Thickness: Balances rigidity, responsiveness,
and speed.
Aluminum Mast
Available in 65, 70, 77, 85 cm.
The Aluminum Mast features a robust foil section with an
optimized profile that offers impressive stiffness and minimal
drag. Despite its 19mm thickness, the design performs
like a thinner mast at higher speeds, maintaining comparable
submerged drag to the Carbon Mast above 13 mph. It
provides a durable and cost-effective alternative with solid,
reliable performance.
Optimized Foil Section: Delivers excellent stiffness-toweight
ratio and low surface drag, with a 19mm mast
designed to perform like a thinner mast.
High Ventilation Resistance: Maintains laminar flow
and performance at aggressive angles, through turbulence,
and at higher speeds.
Comparable Performance: Matches the submerged
drag of the Carbon Mast at higher speeds.
KT Foiling Aluminum foil components are made from
6061-T6 aeronautical-grade anodized aluminum. Our
Aluminum foil components are CNC-machined and
have FEM structurally engineered connection details.
Baseplate
(Applicable to Both Carbon and Aluminum Masts):
Low Profile Streamlined Shape: Reduces drag and
enhances overall performance.
Seamless Integration with Shim: Easily insert baseplate
shims from either side to adjust the board angle relative
to the foil for quick and precise tuning.
Short Cord Length for Maximum Adjustment: Offers
flexibility in mast positioning across all foilboard
brands.
Slotted M8 Screw Fittings: Allows for quick and easy
mast installation or removal by sliding track screws on
or off the baseplate.
